How Much Electricity Do You Use?

Electricity usage is measured in Kilowatt-Hours (kWh), which add up over time. One kilowatt-hour equals 1,000 watt-hours.

For example, if you burn a 100-watt light bulb for one hour, you've used 100 watt-hours of energy.  If you burn that same 100-watt bulb for 10 hours, you've used 1,000 watt-hours - or 1 kilowatt-hour (kWh) - of energy.

You could also run your 700-watt plasma TV for 3 hours and use another 2.1 kWh of energy. It all adds up over time.

The average home uses about 10,000 kWh of electricity every month.  Your own kWh usage is printed right on your electric bill.  Take a look over the past several months to see how much you use at different times of the year. (Careful with that air conditioning!)

Let's say you use the average of 10,000 kWh per month. If your electricity comes from coal, that means you are personally responsible for putting about 200,000 pounds of CO2 in the atmosphere every month!

If your electricity comes solely from hydropower, your CO2 emission would be zero.

Environmental Considerations, continued...

Comparing Hydropower to Other Alternatives

Comparing Energy Sources for Electricity



By itself, electricity is an exceptionally clean form of energy – but we have to consider how it is generated. Today, about 70% of U.S. electricity is produced from fossil fuels (about 50% from coal, and 20% from natural gas). Nuclear power accounts for another 20%, leaving about 10% coming from renewable resources like wind, water and solar. The result of this mix is that electricity generation is currently the largest source of energy-related CO2 emissions in the United States.

The top blue line shows the total amount of electricity generated in the Untied States over the course of a year.  Individual lines below show the amount generated by various energy sources.  Source: U.S. Energy Information Administration

Evaluating Environmental Impact

Each method of generating electricity has advantages and disadvantages, as well as significantly different effects on the environment.  The chart below helps illustrate the differences between the various energy sources used to generate electricity:

Fuel Type	Co2 Emissions per kWh	Power Availability	Ongoing Fuel Costs	Other Environmental Impact
Coal	About 200 pounds	24x7, 365 days per year	YES	Strip mining & groundwater contamination Airborne mercury contamination Non-renewable fuel source
Natural Gas	About 130 pounds	24x7, 365 days per year	YES	Non-renewable fuel source
Nuclear	zero	24x7, 365 days per year	YES	Extremely dangerous toxic waste Non-renewable fuel source
Wind	zero	Varies directly with wind speed	NO	Potential bird kill Highly visible Noise issues
Solar	zero	Daytime only, affected by clouds	NO	High energy used in manufacture Toxic silicon tetrachloride waste
Water (Reservoir Hydropower)	zero	24x7, affected by seasonal precipitation	NO	Flooding behind dam Impact on fish migration (if not mitigated)
Water (Streaming Hydropower)	zero	24x7, affected by seasonal precipitation	NO	Reduction in stream water flow

How Fuel-Powered Generators Work

With the exception of hydropower, wind and photovoltaic solar energy, most power plants generate electricity by burning fuel. For example, large diesel generators operate similarly to portable home generators, where a conventional, fuel-burning engine is connected directly to a generator to produce electricity. Natural gas is similar, although it is burned in something more like a jet engine, but still connected directly to a generator.

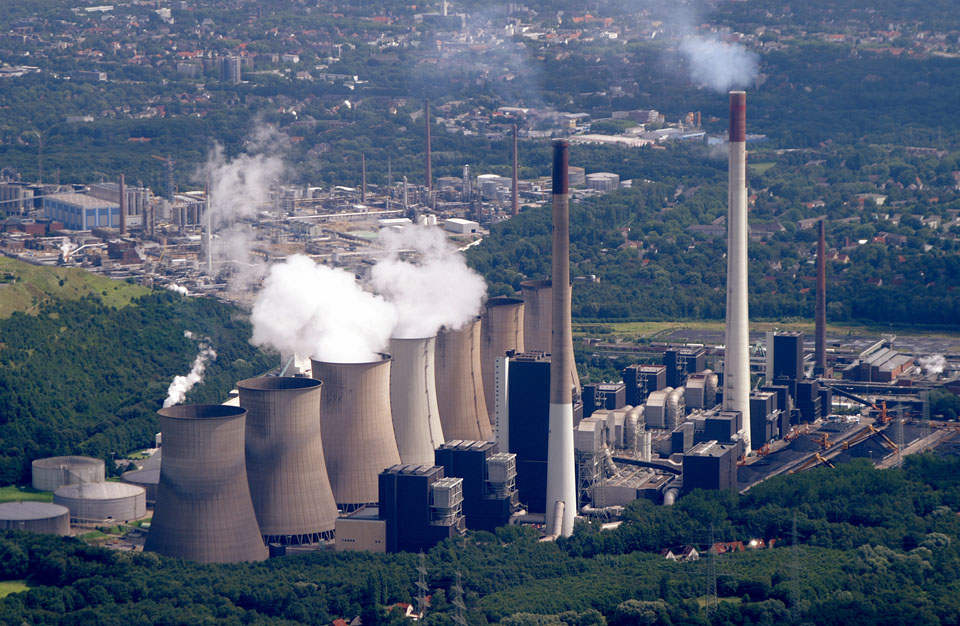

Coal, our most common fuel source for electricity, is used differently.  Since coal doesn't run an engine very well, a coal-fired plant burns its fuel in a special boiler that heats water-filled pipes, and the resulting high-pressure steam is used to drive a turbine that is connected to a generator.  Nuclear power plants work similarly, although the "fuel" used to produce steam is radioactive material and the heat is generated through nuclear fission (splitting atoms).

The process of using heat to create steam power has been around for hundreds of years, and works with just about any fuel source - even wood.  You may be surprised to learn, therefore, that steam power is being revived for a new generation of high-tech solar power plants.  Concentrating Solar Panels (CSPs) use reflective surfaces to collect and concentrate the sun's rays onto a very small area, creating tremendous heat to drive steam turbines. But this time, the fuel has no emissions, no waste, and no ongoing costs.
